$0.00

Shipping calculated at checkout.

Quantity

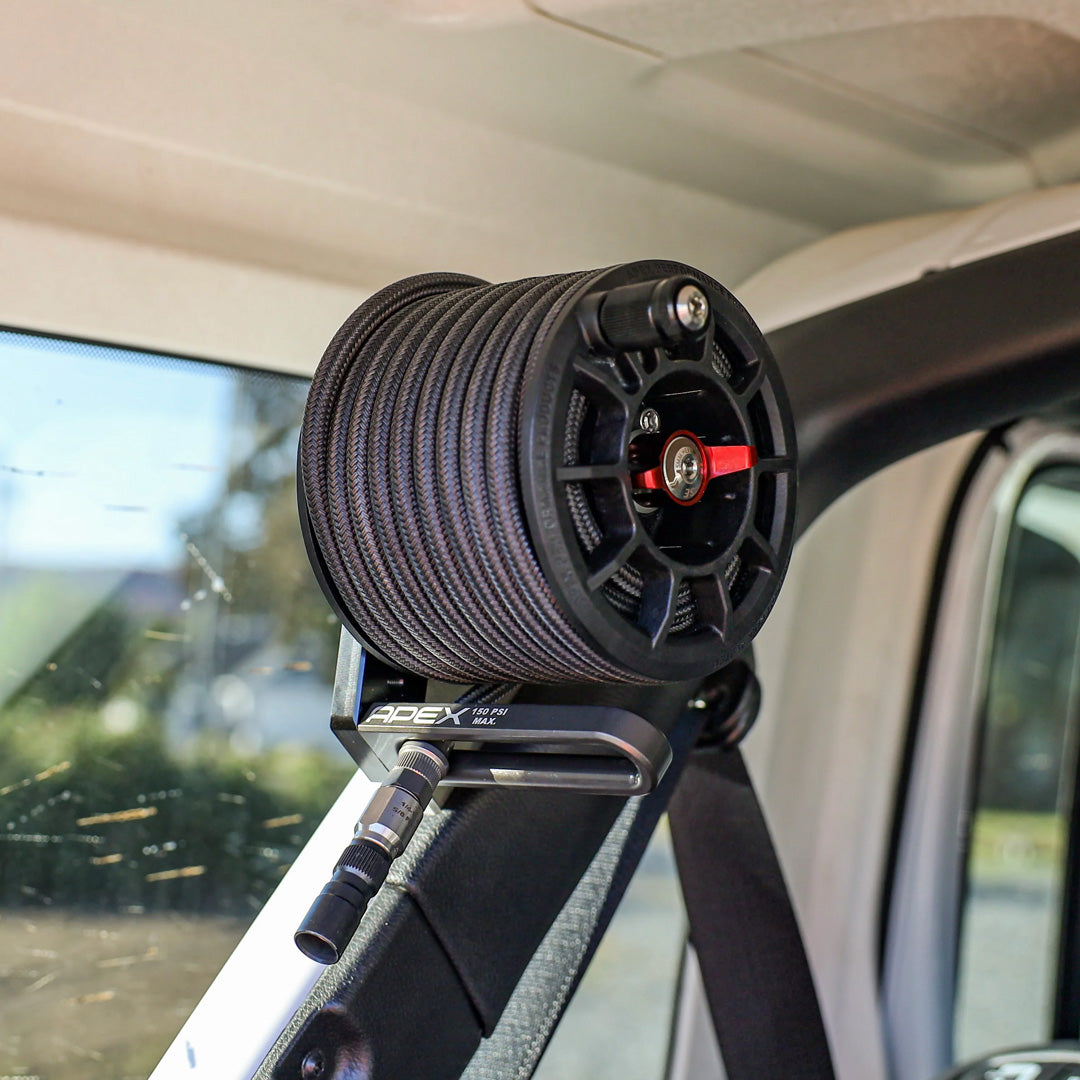

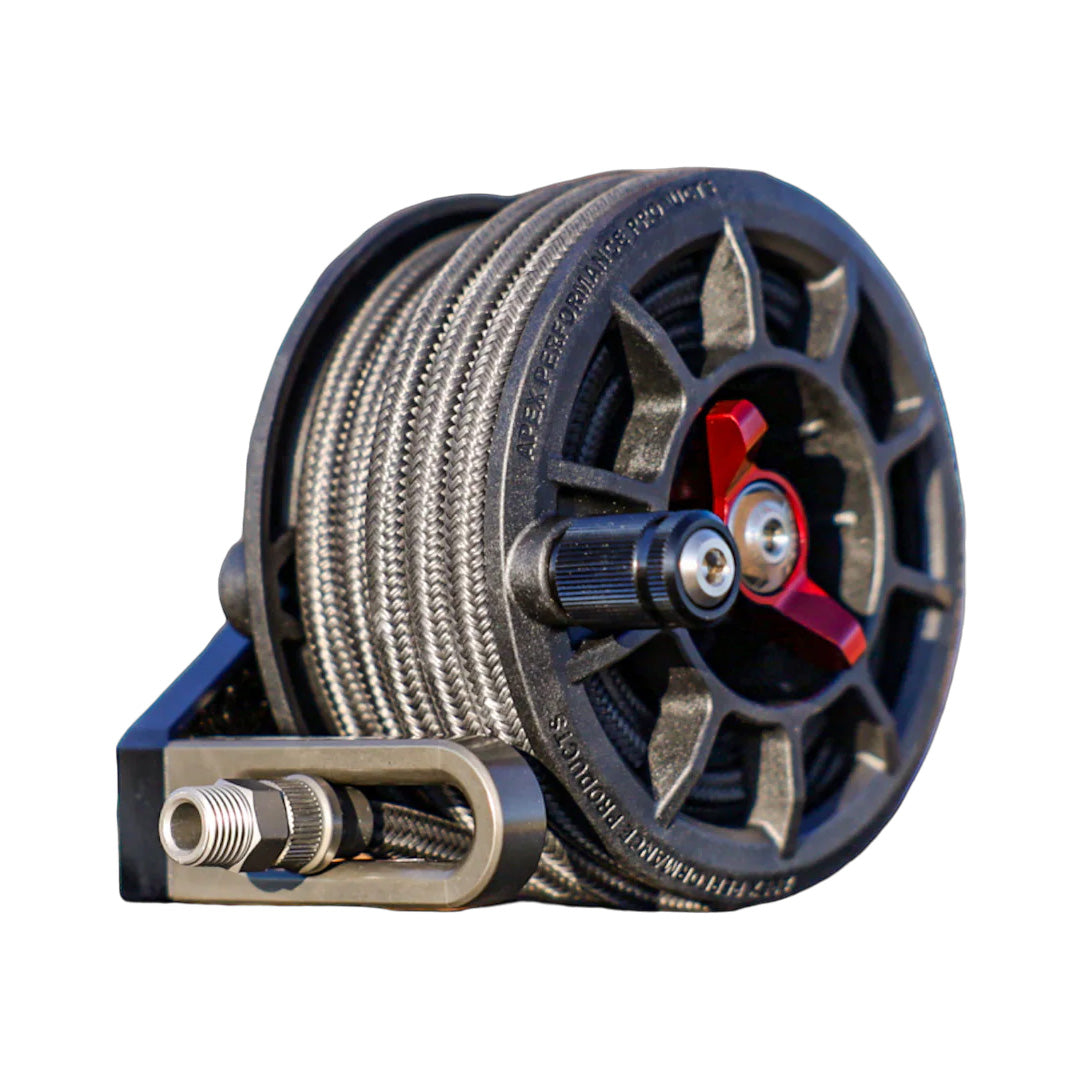

Designed and built to be the highest quality compact hose reel on the market. The Compact Reel System is a game changer when it comes to mobile air inflation. Compact and universal in design--It works in a wide variety of applications!

MOUNTING BRACKETS AND CHUCKS ARE SOLD SEPARATELY.

IMPORTANT: DO NOT DISASSEMBLE THE HOSE REEL FOR ANY REASON. DOING SO WILL DAMAGE THE REEL AND VOID THE WARRANTY.

Features:

High impact DuPont glass filled nylon 66 reel guide
Highly resistant to UV and chemicals
6061-T6 aluminum with wear resistant and fade free hard anodized surface
Viton seals seals for high temperature environments and resistant to chemicals
Nitrile hose with nylon over braid: Allows for compact designs, abrasion restraint with high burst pressure all while maintaining flexibility at cold temps and high burst pressures at 200F
Compact and Universal mounting options
Rattle Free
Greased and sealed aluminum knob
Rebuildable with the ability to cut and fix hose in the field with only a knife.
Flow matched for high flow APEX valves. Very low back pressure when using onboard air systems.
